Portable Charger User Guide
The Portable Charger can charge your Pocket WiFi, smartphones, tablets, and other devices. It also supports USB-C and wireless charging.
? Parts Description
▼ Body (Front)
The battery level of the Portable Charger is displayed at the top.
You can also charge a wireless-charging-compatible smartphone by placing it on top of the unit.
▼ Body (Right Side)
Short press the button on the side to display the remaining battery level.
*The display will turn off automatically.

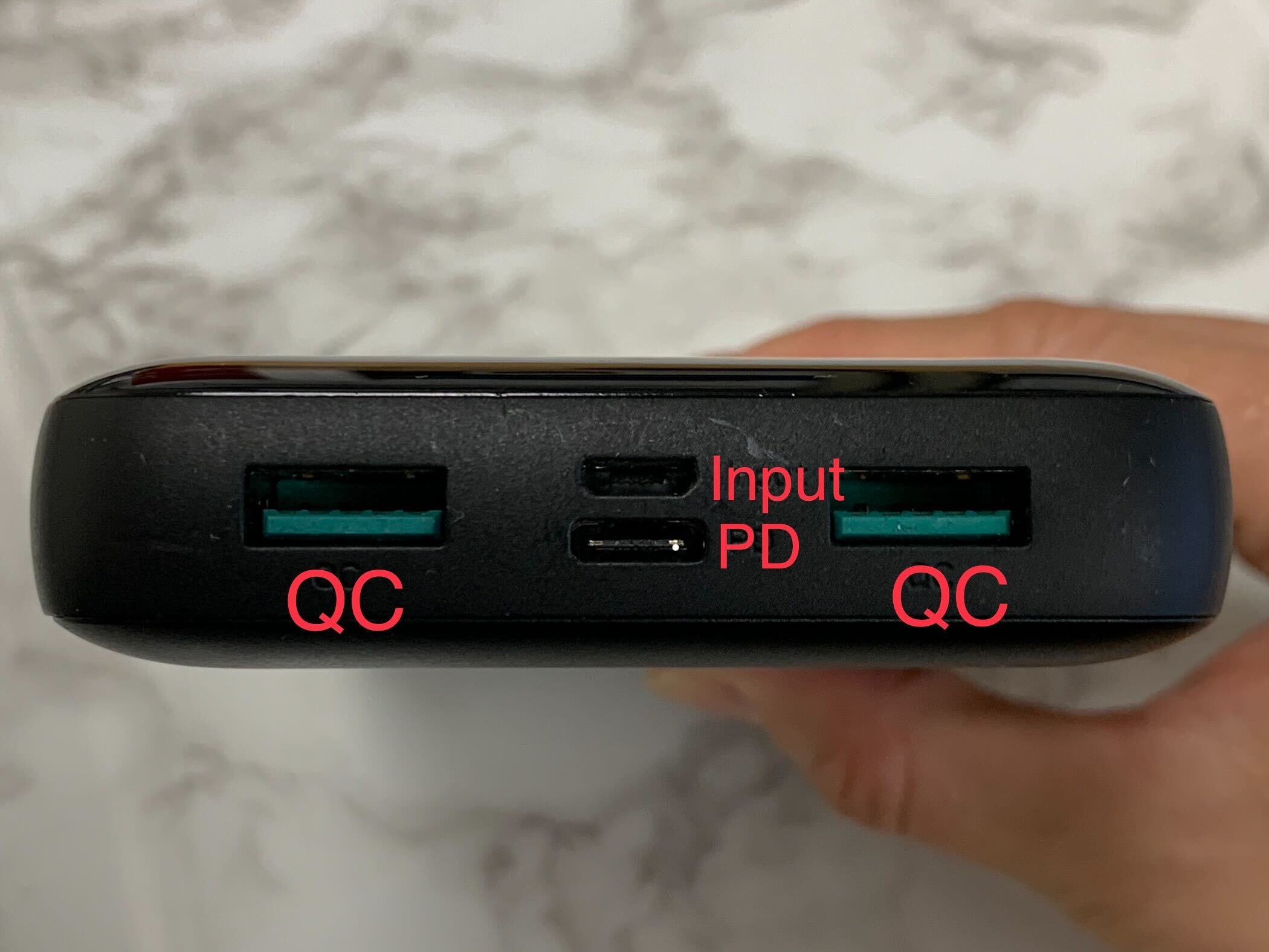

▼ Body (Top Side)
There are 4 cable outlets.
| Port | Type | Qty |
|---|---|---|
| QC (Output) | USB Type-A | 2 |
| Input | Micro USB Type-B | 1 |
| PD (Output) | USB Type-C | 1 |
? Charging Instructions
Charging Pocket WiFi from the Portable Charger
Use a [Micro USB Type-B] cable to charge your Pocket WiFi.
Charging the Portable Charger itself
Use a [Micro USB Type-B] or [USB Type-C] cable to charge from a wall outlet.
⚡ Battery Specifications
| Item | Specification |
|---|---|
| Battery Capacity | 30,800mAh (133.96Wh) |
| Type-C Input | 5V/3A, 9V/2A (Max) |
| Type-C Output | 5V/3A, 9V/2.77A (Max), 12V/1.67A |
| USB QC Output | 5V/3A, 9V/2A, 12V/1.5A, 4.5V/5A |
| Micro USB Input | 5V/2.1A, 9V/2A |
| Wireless Charging Output | 15W (Max) |
✈️ Airline Carry-On Notice
If you plan to bring this battery on a plane, please check your airline's restrictions on carry-on batteries in advance.
We cannot accept cancellations or refunds due to inability to carry the item on board after your rental has started.
? Contact Us
For questions, please contact us at customer@universalmobile.us.
